Routing Machine cutting PCBs

CNC Routing Machine

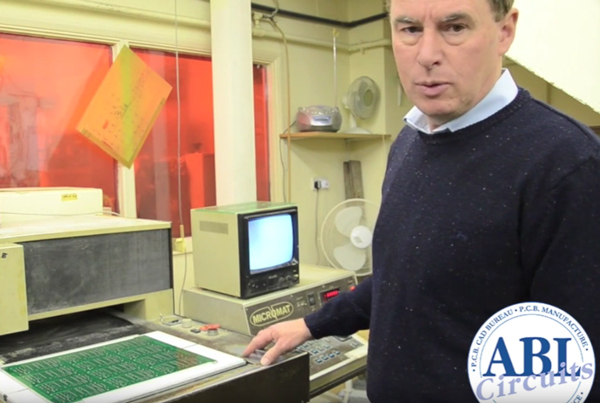

This is our CNC Routing Machine used for cutting out boards at the end of all the processes and we can leave them in a panel, like that with all sorts of complex shapes, sizes, angles, radiuses, gradients or we can fit them out with single circuits depending on what the customer prefers. They’re often left in the panel like that for ease of assembly. This one will rout out individual circuits because that’s what the customer requires. So depending on the complexity of the board we can either program them manually using a tool stick and a video camera or we can load up CNC Gerber files if it’s a complex outline such as that. So we use the 1.6 router.
