PCB Etching process

PCB Panels

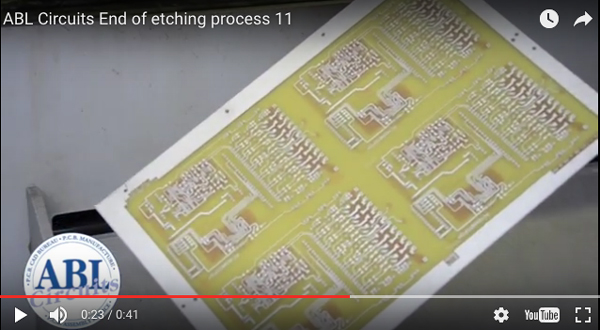

So here we can see the PCB panels coming out of the etcher in the PCB etching process and as you can see all the copper has been spray rinsed off leaving us our tracks with our tin on top, both sides, perfectly done.
